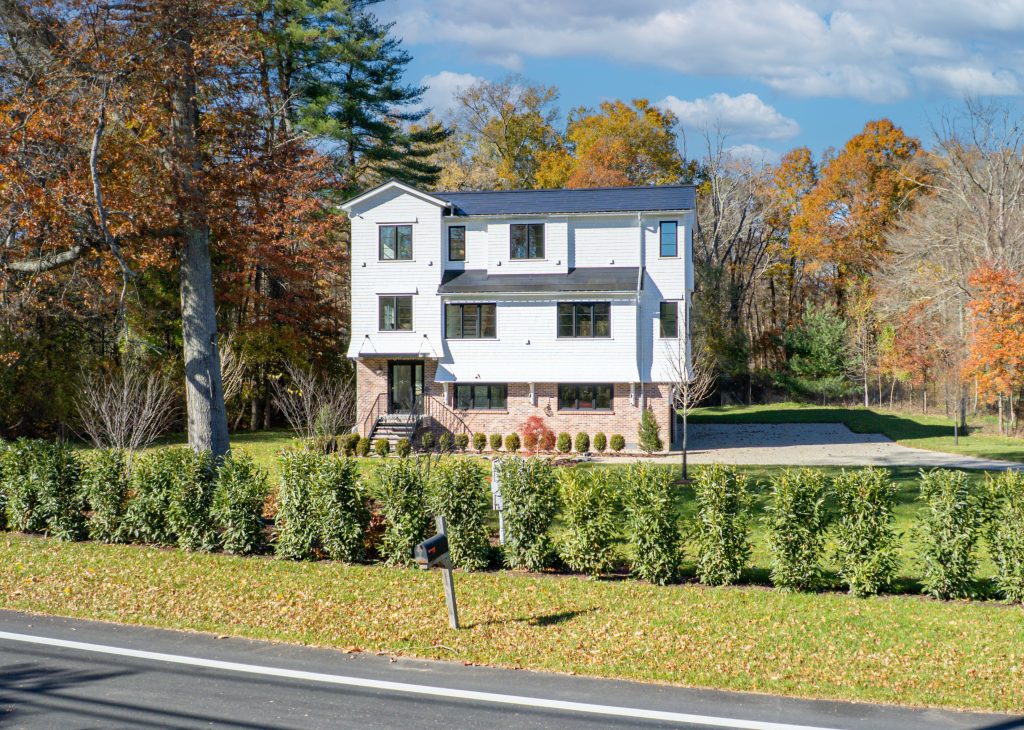

Green Village Rd.

Foundation

• 12" steel Reinforced Concrete with a double #5 rebar mat.

• Poured concrete walls has a Bitutane waterproofing membrane with a 4"rigid foam vapor barrior & thermal break, 1" airspace finished off with a 3"brick veneer and weep holes.

2nd Floor Structural Concrete Deck

• 8-12" thick steel reinforced concrete deck with integrated rebar reinforced structural beams & #5 6x6 double rebar integrated mat.

• Floor has a 3" rigid foam thermal break integrated into an overlapping framing grid.

Wood Framing

• Wall studs on the entire 2nd floor with 10'high ceilings is 2x8 LSL construction.

• 3rd floor walls are 2x6 construction.

• All wall framing sheathed using a Zip system with a 1" foam backer for a complete thermal & sound barrier.

• Roof construction was framed with Kiln dried Douglas Fir & sheath using 3/4"CDX & covered initially with Grace high temperature self adhering ice & waters shield.

 Insulation

• All exterior walls were sprayed with 3" of Closed Cell spray foam, topped with 4"of Rockwool.

• All interior walls & floors systems were insulated with Rockwool for sound & thermal migration.

• All roofing was sprayed solid using 8" of Closed Cell spray foam.

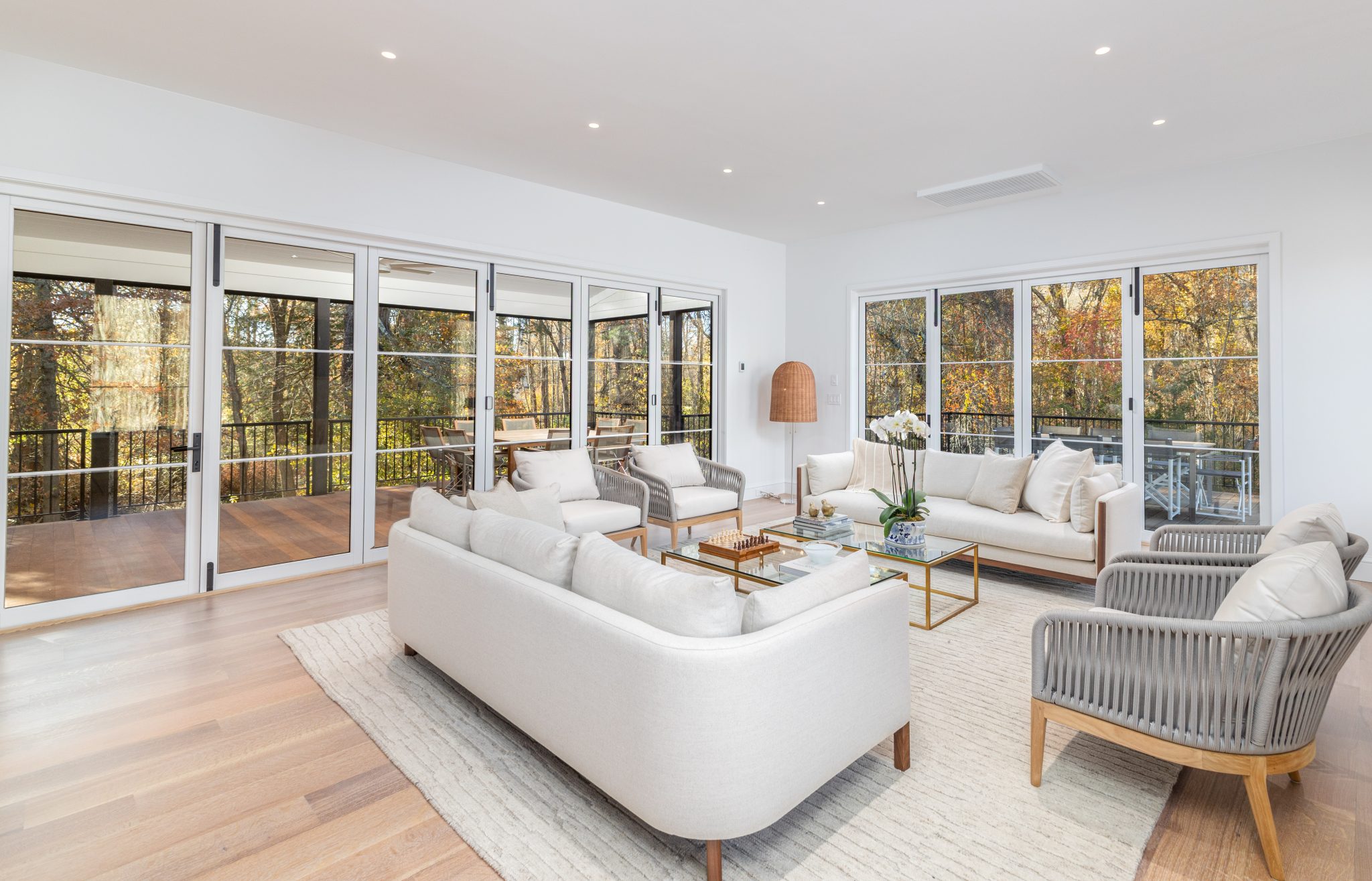

Windows

• All windows & doors are custom manufactured windows by Loewen, with triple glazing & Douglas Fir construction & extruded Aluminim exterior.

• Window & door package is of very high performance both from a thermal, sound performance and come with the highest industry standard warranty.

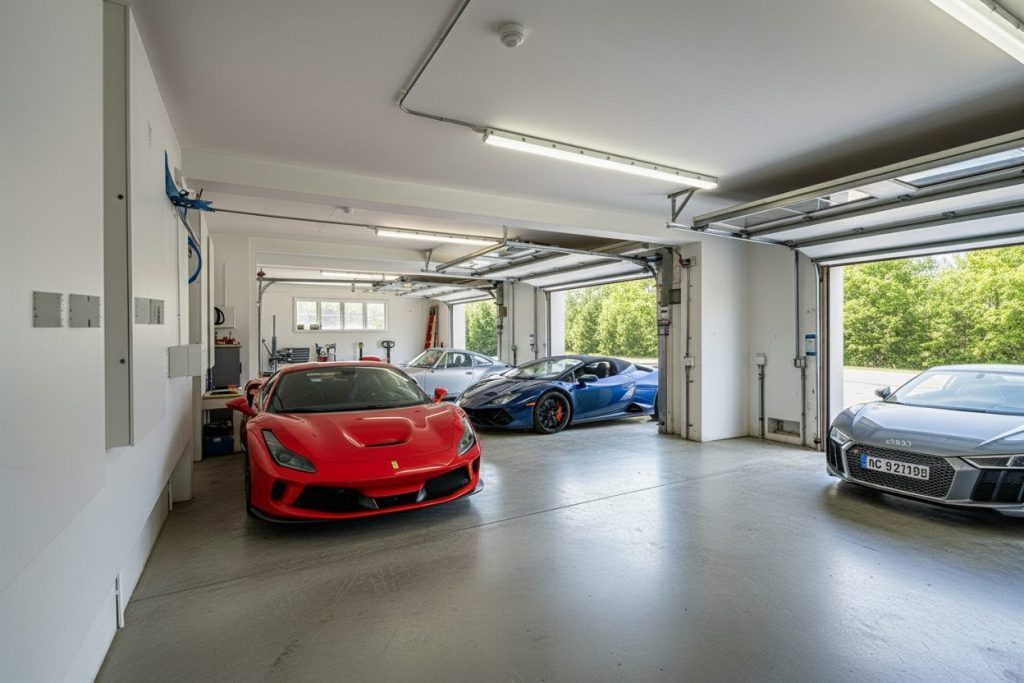

Garage Doors

• Garage doors are 2-1/2" thick insulated wood composite with a factory finish & insulated glass panels, using side mounted heavy duty openers.

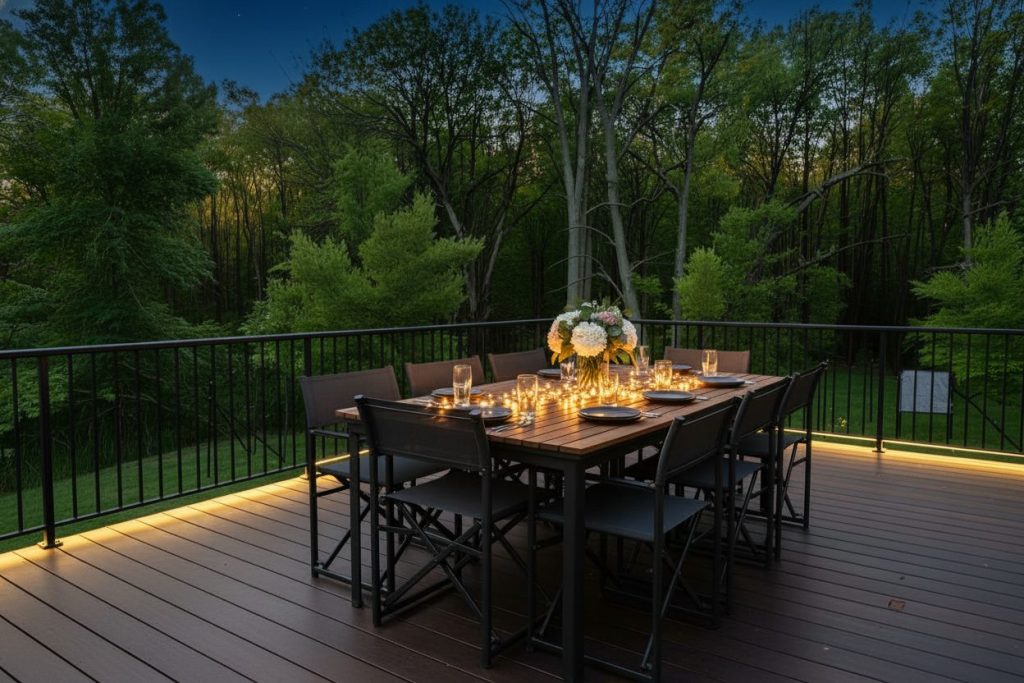

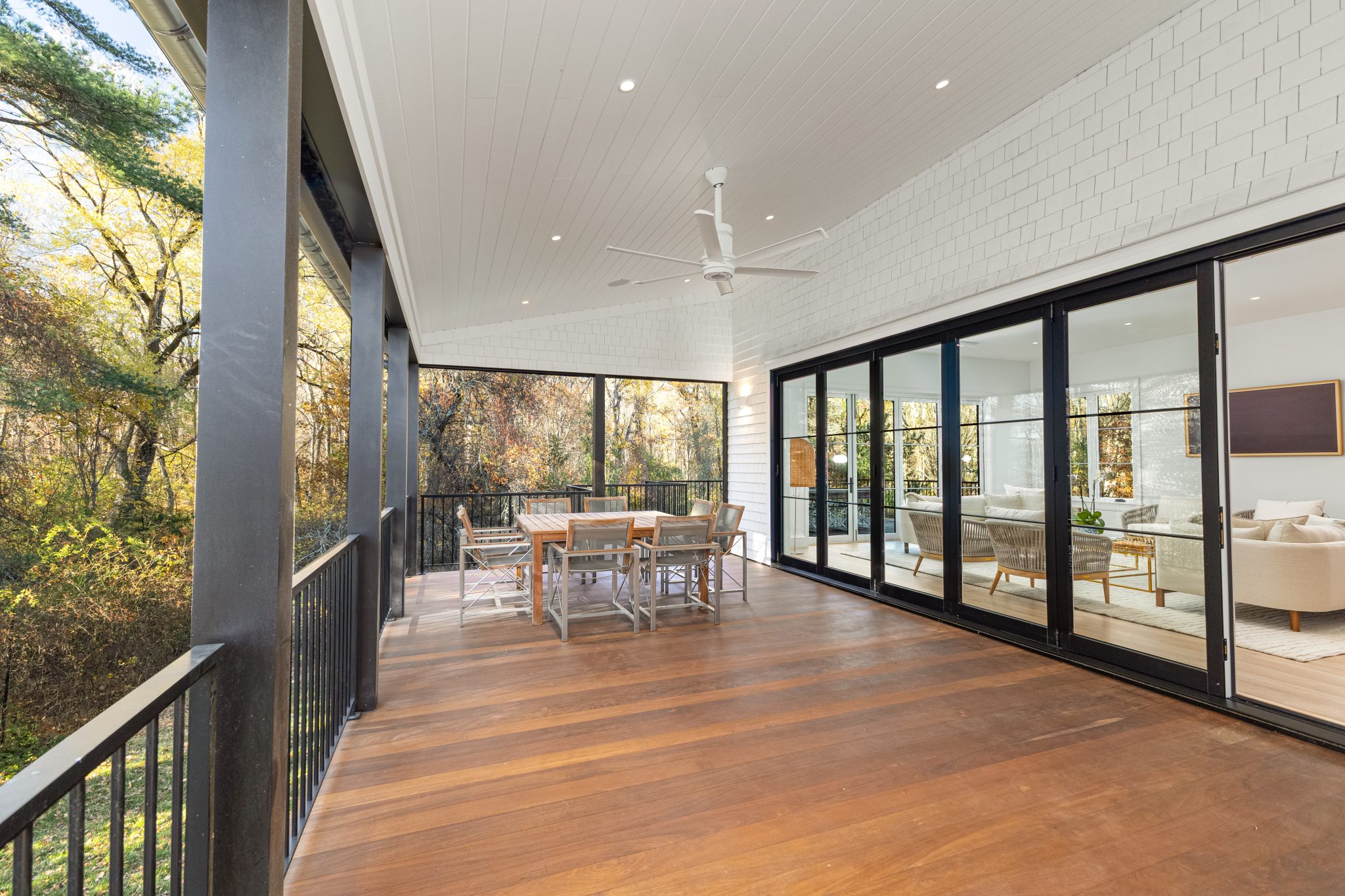

Screened Porch & Deck

• All decks are cantilevered using custom engineered & integrated steel construction for superior structural integrity & minimal vibration.

• All decks are finished using Ipe with hidden stainless fasteners & a powder coated custom aluminum railing system.

• The covered porch has automated 90%wind & water resistant screens.

• Deck has a 15' span automated retractable awning.

Roofing

• Roof constists of 100% solar Glass tiles, manufactured by Tesla, backed by a Tesla roof membrane & the highest warranties in the industry.

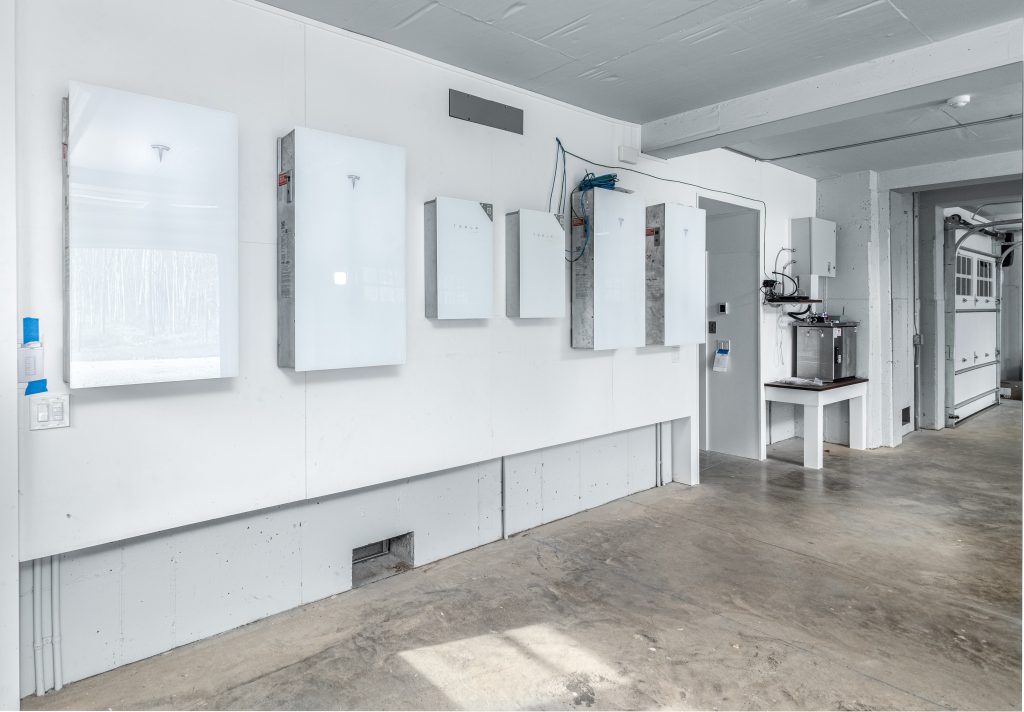

• The roof feeds 4 Tesla Powerwall batteries which power and backup the entire home.

• The roof generates 19.3 KWH of power.

Exterior Siding & Trim & Gutters

• House is cladded in pre-primed &finished white cedar shingles, with added felt paper & aluminum flashing.

• All trim is Boral composite for low maintenance & longevity.

• Gutter system is of European standard with brackets 12" OC, & heavy duty Galvanized finish & size for added capacity & longevity.

• All leaders are tied to an underground leader system, which is connected tomaster drainage system.
